Custom Digital X-Ray Systems

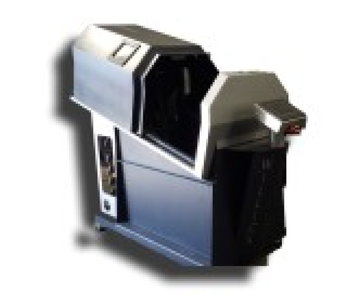

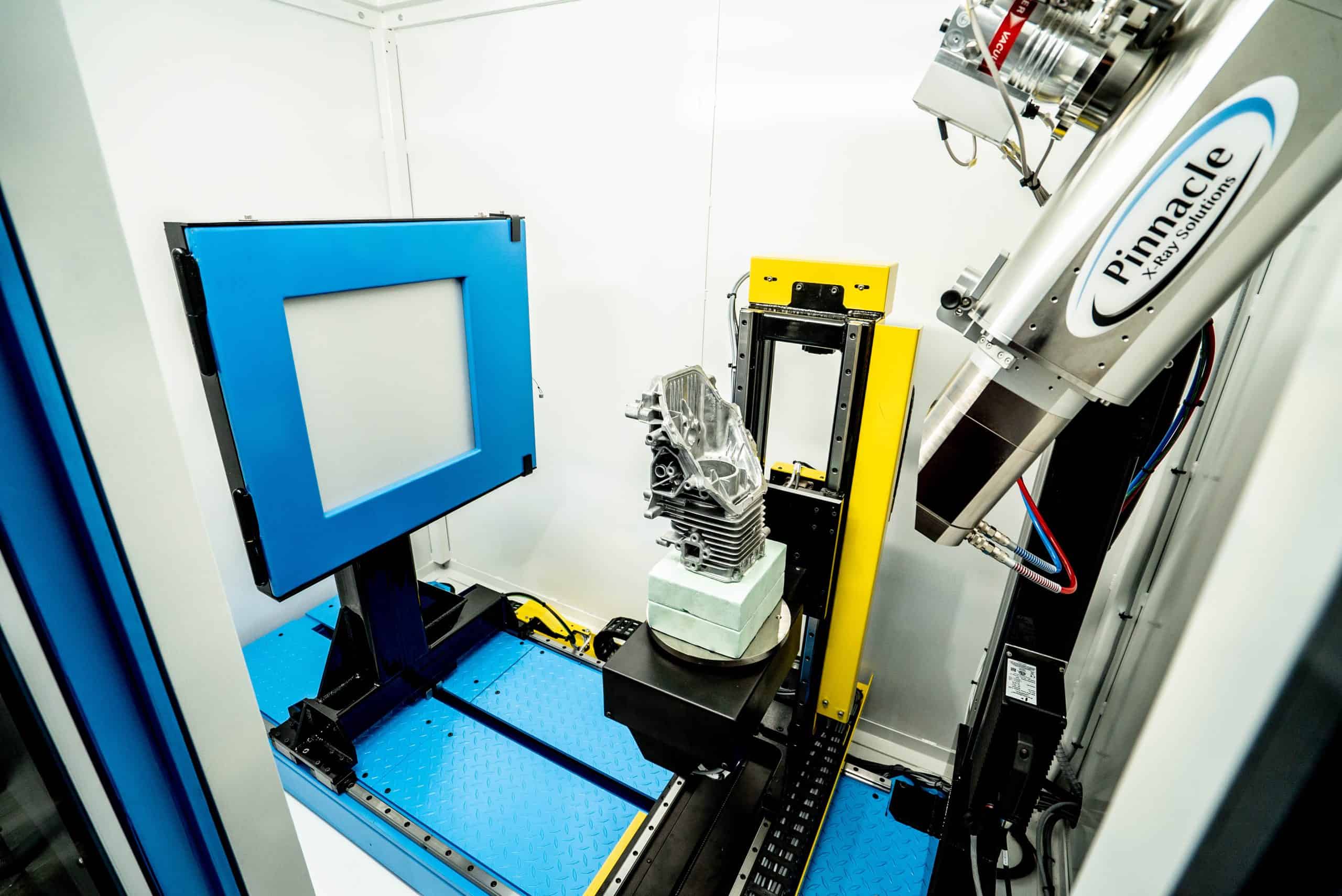

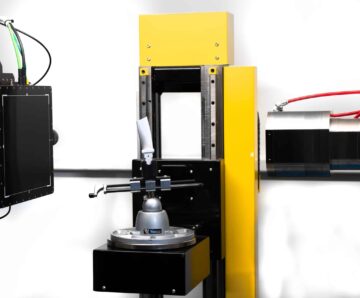

Best-selling standard cabinet system for 2D X-ray and CT. The part is placed on a turntable that moves vertically and horizontally. PXS- VPM Highlights:- – Excellent cost to benefit ratio
- – Wide range of detector and tube options
- – Short lead time
Willick Engineering is proud to offer an expanded range of DR, CT Digital systems, and software customization capabilities as a result of our acquisition by Pinnacle X-Ray Solutions.
Pinnacle X-Ray Solutions, LLC offers advanced imaging equipment services along with all-access customer support. Our comprehensive, full-service company specializes in the sale, manufacture, service, and support of 2D/3D (DR/CT) X-Ray Systems and maintains an in-house Inspection Services Group. The Company delivers state-of-the-art technology and expert professional services.
For more information on Pinnacle, please visit www.pxsinc.com.
Detector: iRay NDT 1717HS 225
Max. part weight: 250 lbs
Max. part height: 30″ / 762 mm
Max. part width/diameter: 23″ / 584 mm
Shielding: 225 KV
Vertical axis travel: 30″ / 762 mm
Focus-Detector-Distance: 10″ – 53″ / 254 – 1,346 mm
Tilt axis: Optional +/- 30 degrees
Cabinet dimensions (WxDxH): 103″ x 57″ x 91″ / 2,616 x 1,447 x 2,311 mm
