| Active area | 350 mm x 426 mm (14″ x 17″) |
| Dimensions (H x W x D) |
384 mm x 460 mm x 15.5 mm |
| Weight | 4.6 kg (10.1 lbs) |
| Number of pixels | 3524 x 4288 |
| Exposure time | 0.5 s to 180 s |
| Image transfer time (wired/wireless) |
0.5/3 s |
| Max. Energy | 270 kV (for long life in typical applications), Isotopes (higher energies possible) |
| Pixel pitch | 100 μm |
| Scintillator options | CsI, GOS |
| ADC | 16-bit |
| Interface | Gigabit Ethernet, WLAN (802.11n @ 5 GHz) |
| Battery | Lithium-ion (11.1 V, 5800 mAh), charging time 3h |
| Operating conditions | -20 to 50°C (-4 to 122°F), 20 to 80 % humidity |
| Protection level | IP54 (dust and splash water protected) |
| Housing | Aluminum frame, carbon-fiber entrance window (150 kg area load) |

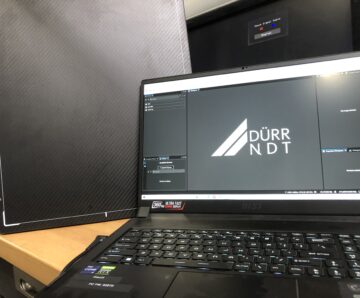

| Software | DÜRR NDT D-Tect 9.9 or higher |
